LTFH-800 Filter Material Composite Machine

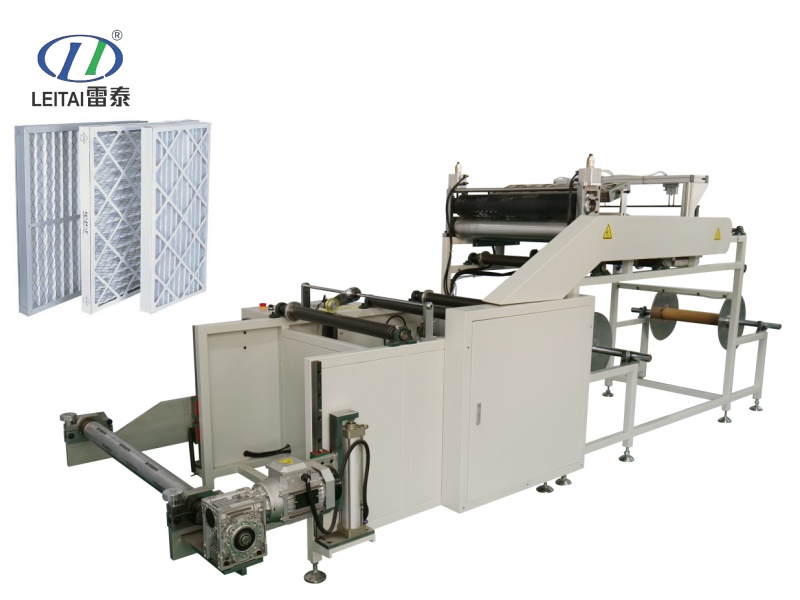

The LTFH-800 filter material laminating machine uses hot melt adhesive as the bonding agent. After high-temperature melting, the hot melt adhesive is covered by the adhesive roller, and then the wire mesh passes through the adhesive roller and is bonded to the non-woven fabric. In order to enhance the firmness of the bonding, after bonding, the non-woven fabric and wire mesh will be flattened by a pressure roller to ensure a stronger bond between the two. Subsequently, after being stretched by the tension roller, the material enters the winding mechanism to complete the composite bonding winding process of non-woven fabric and wire mesh.

In terms of operation, the LTFH-800 filter material composite machine has achieved automation. The feeding of steel wire mesh adopts the automatic feeding method of cylinder, which reduces the labor intensity of workers and improves work efficiency. The unwinding process of the steel wire mesh is controlled by an air expanding shaft and a magnetic powder brake to ensure effective tension control during unwinding, thereby making the unwinding process more stable. The application of these automated control systems makes operations more convenient, reduces human intervention, and improves production efficiency.

The power source of LTFH-800 filter material composite machine includes electricity and compressed air. Electric drive provides the basic power for machines, while compressed air is used for the operation of cylinders. This power combination is both stable and reliable, and can meet the power requirements of the compound machine during operation.

In summary, the LTFH-800 filter material laminating machine has the ability to automate the composite bonding of non-woven fabric and wire mesh. It is bonded with hot melt adhesive to ensure smooth and firm bonding. At the same time, the machine has the characteristics of high efficiency and convenient operation. In terms of power, it uses electricity and compressed air as power sources to ensure the stability and reliability of the machine. The LTFH-800 filter material composite machine is a powerful and easy-to-use device that can meet the needs of filter material composite processing.
