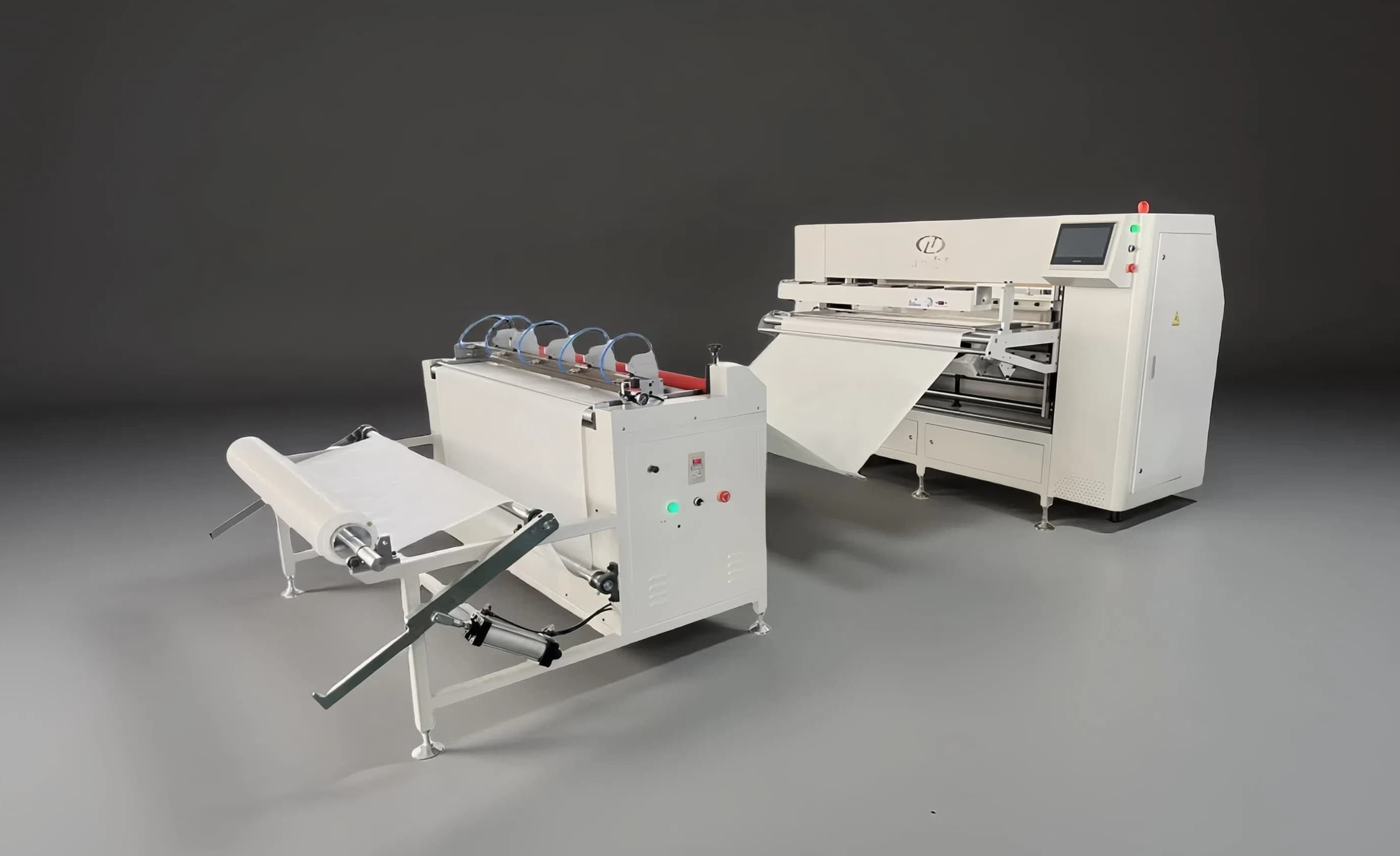

The device has a novel and unique appearance and is easy to operate. It is servo-controlled, highly automated, highly precise, and highly efficient.
Item No :
LTCZ70-1300Order(MOQ) :
1 SETPayment :
T/TProduct Origin :
BENGBU,ANHUIColor :
BLUE,CUSTOMIZATIONShipping Port :
SHANGHAILead Time :
AROUND 30-45 DAYSWeight :
1000KG
PRODUCT DESCRIPTION

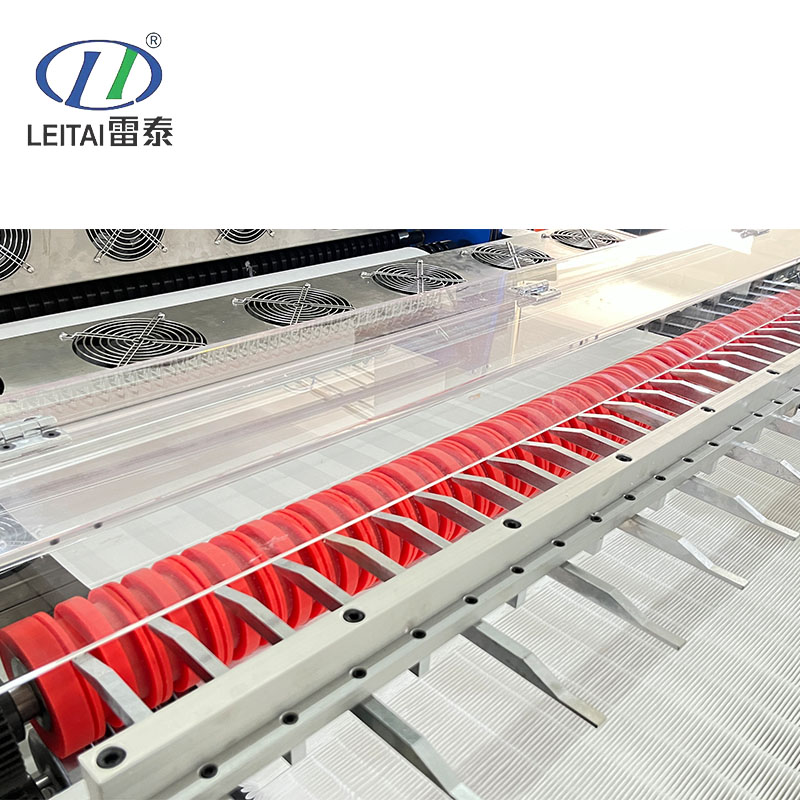

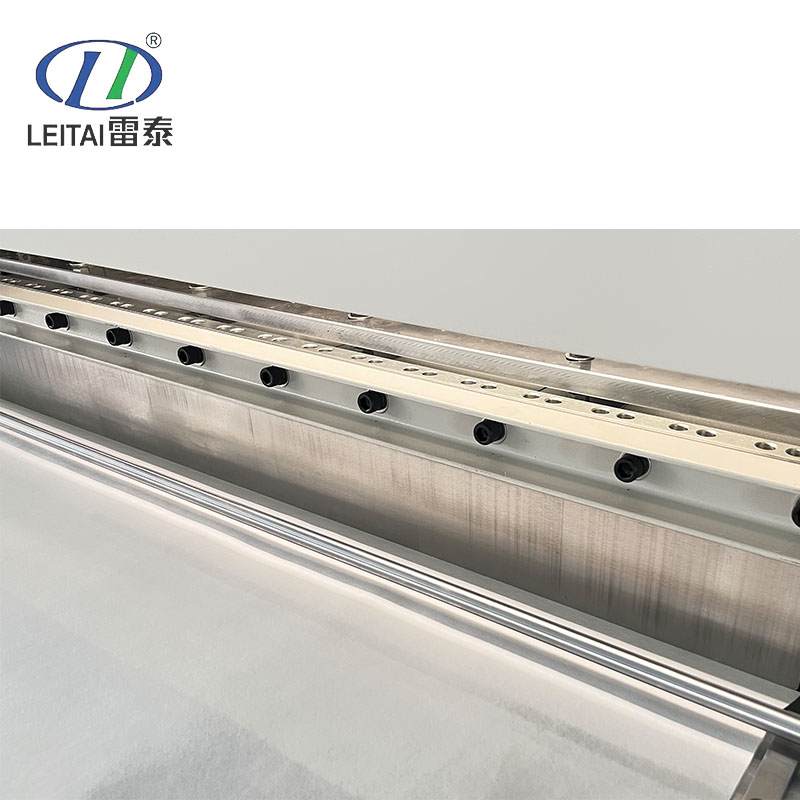

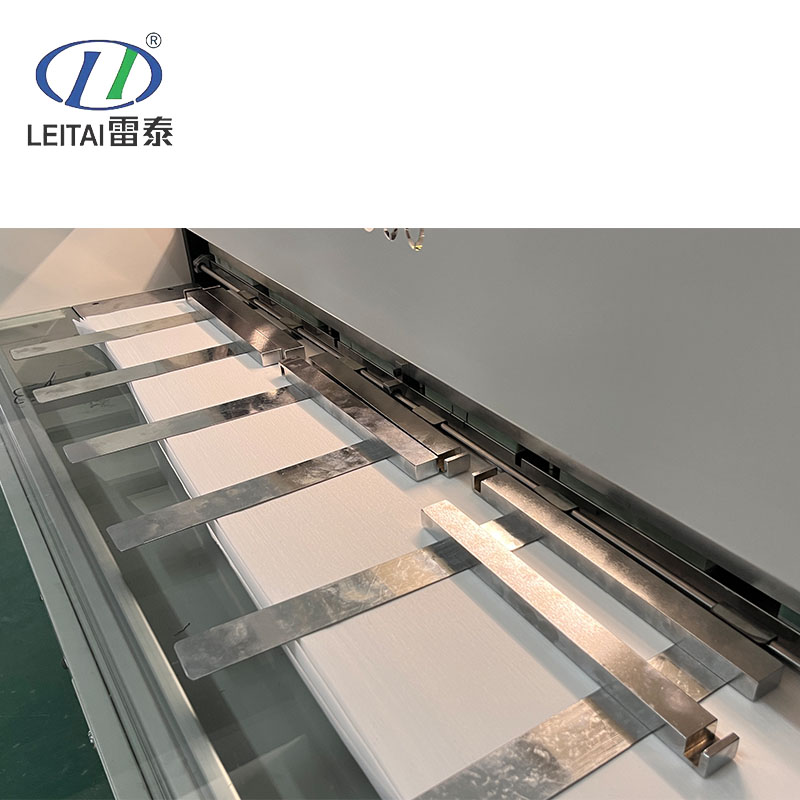

The filter material transported from the previous process passes through the front table board of the folding machine to the front table board. Turn the filter material into the machine under the exchange of the upper and lower two blades. The overlapping height of the two blades is equal to the folding height of the filter material.

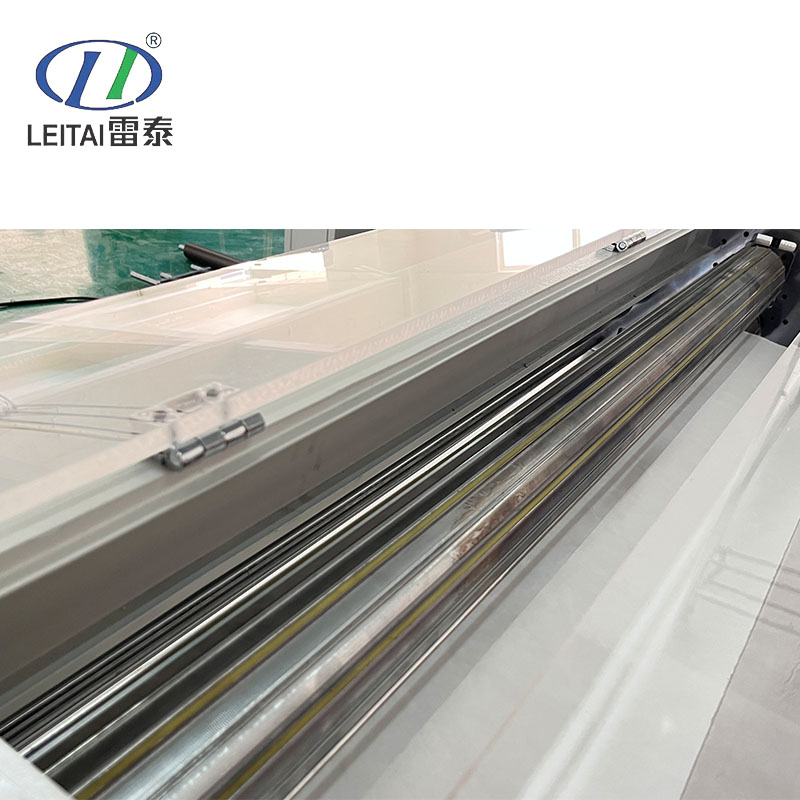

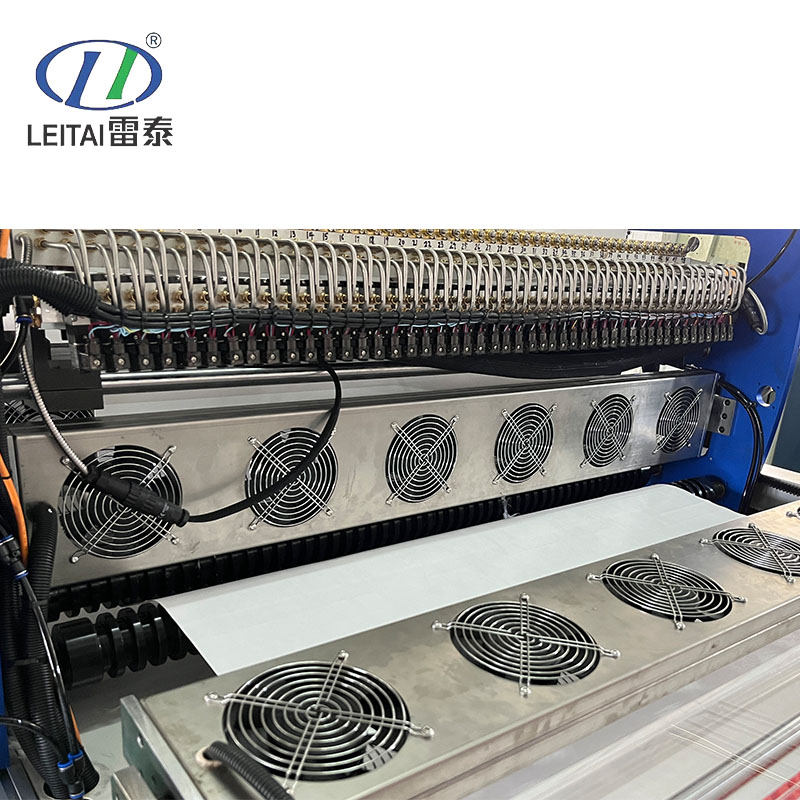

After folding and molding, the filter material passes through the upper and lower heating plate mechanism of the folding machine. The filter material is finalized in the heating plate mechanism under the dual action of temperature and pressure.
The front platform of the folding machine is equipped with a folding dot counting device, and the dot marks the filter material in the folding process according to the set fold number.
PRODUCT SPECIFICATIONS
Pleating Width |
≤1300mm |
Pleating Height Range |
10-70mm(Customized) |
Pleating Speed |
≤100pleat/min(Customized) |
Supply Voltage |
380V/50Hz |
Air Source | 0.6Mpa |
Heating Temperature | Normal-200℃ |
Heating Power | 10kw |
Motor Power | 4.5kw |
Net Weight | 1000kg |
Overall Dimension | 1747x1563x1370mm |
HOW IT WORKS

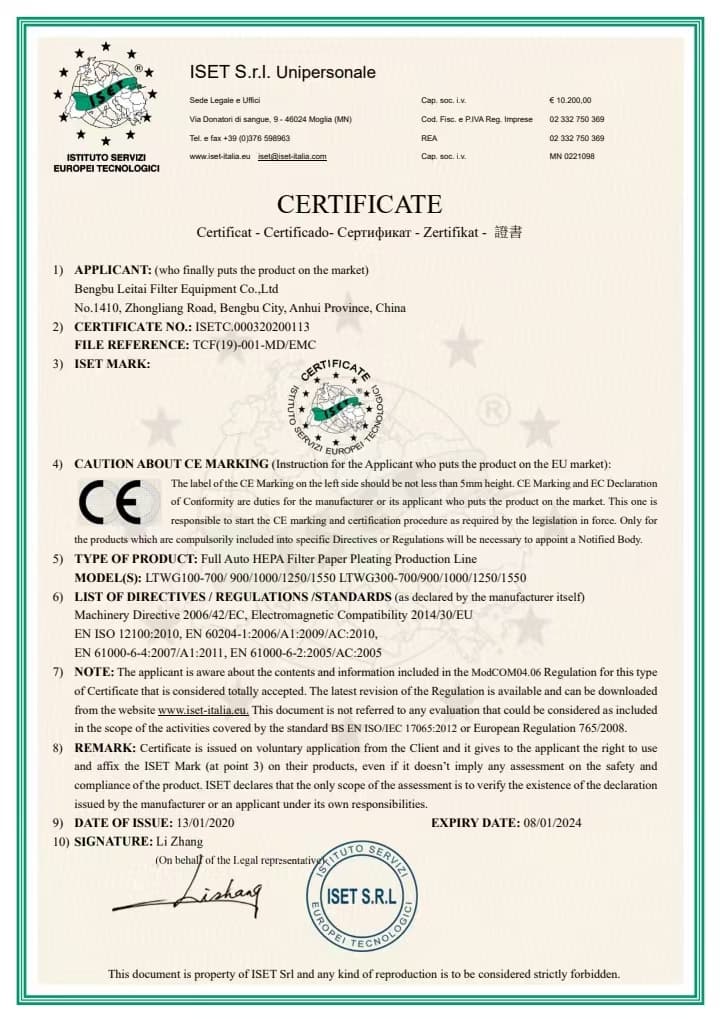

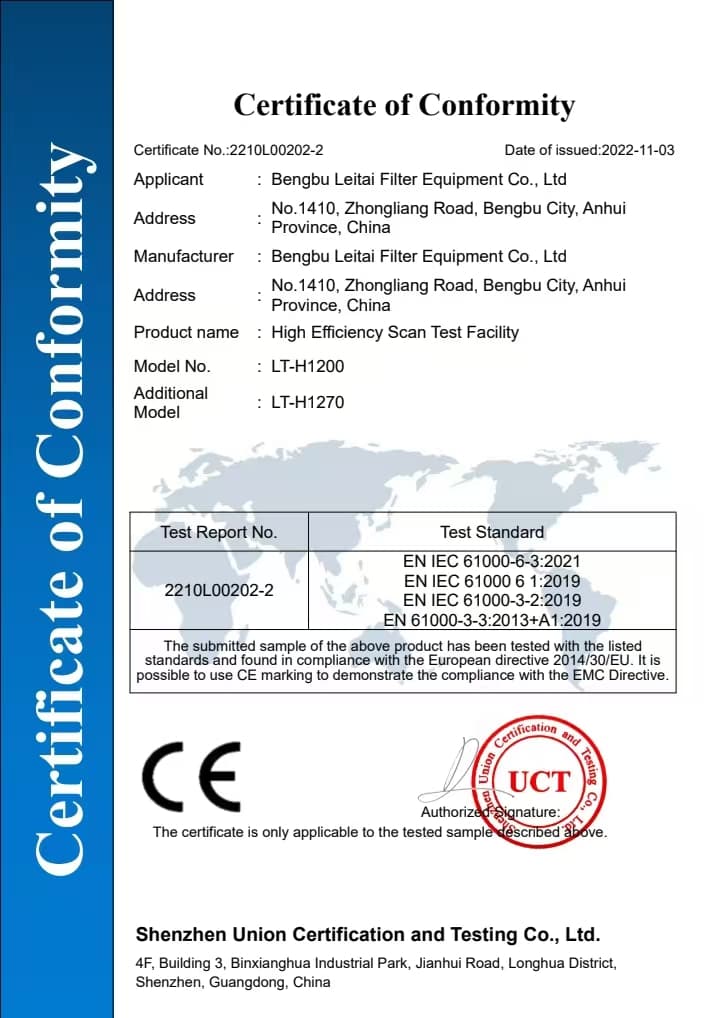

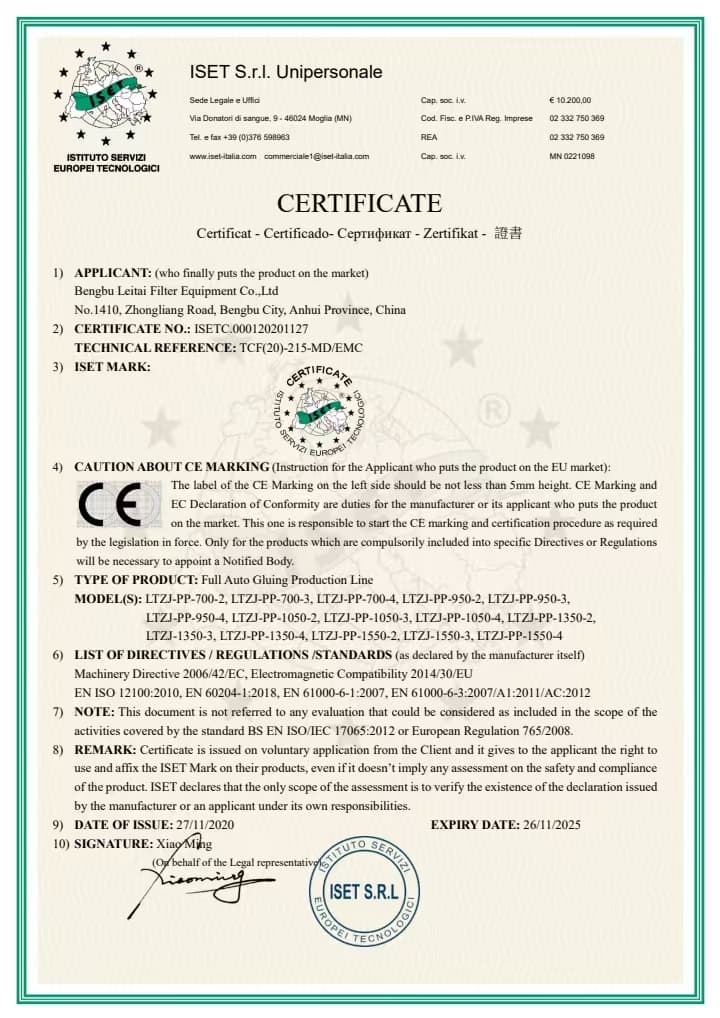

CERTIFICATIONS
COOPERATE PARTNERS
ABOUT US
Bengbu Letai Filter Equipment Co.,Ltd is a professional company specializing in the development,design,production and sales of filter equipment.

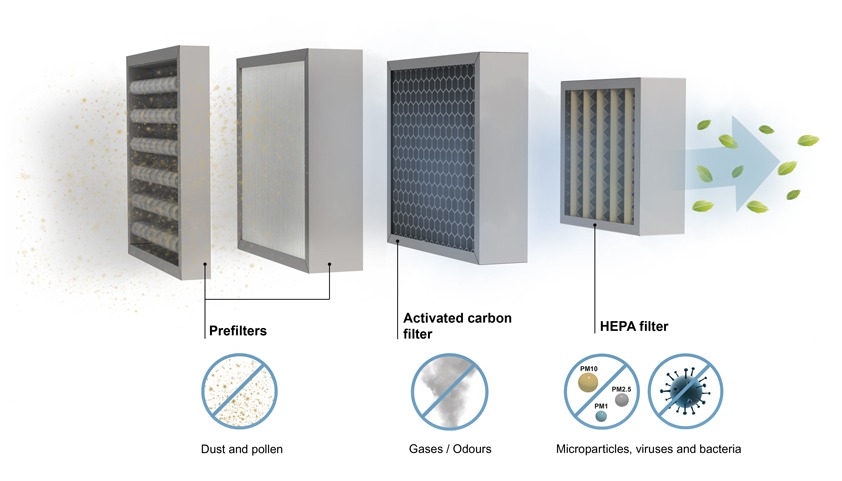

The main products are hosuhole purification,industrial purification,water filtration,dust filtration,industry without partition,with partition filter production equipment.
The main equipment is automatic 300 folding height no partition origami production line,high temperature and high temperatuyre resistant glass fiber origami production line,
automatic knife origami production line,PP origami gluing high folding high climbing gluing production line,automatic air conditioning filter element welt fitting machine,origami machine and so on.
The company has senior technical personnel with more than 10 years of rich experience,the development of more than 30 kinds of product.
And will further develop advanced,practical and efficient modelsacording to the actual production in the industry,pay attention to the domestic and international trends,and make relevant contributionsto the filtration and filter industry in China and the world.
WHY CHOOSE US

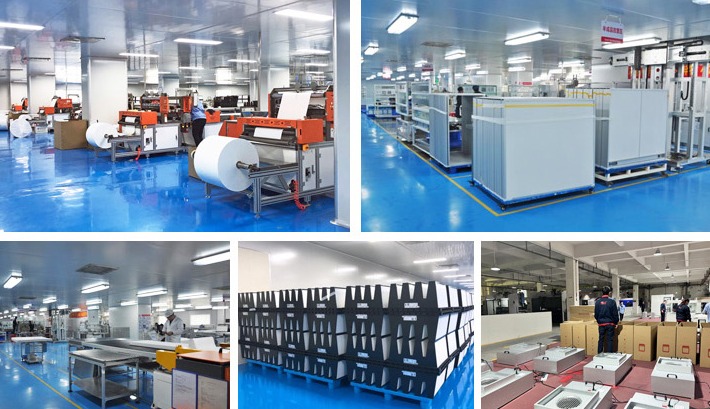

10000 square meters work shop
The factory has sufficient stock supply
24 hours technical and after sales service
Professional maintenance and provision of various accessories
