Item No :
LTCZ-3C-650Order(MOQ) :
1 SETPayment :
T/TProduct Origin :
BENGBU,ANHUIColor :
CUSTOMIZATIONShipping Port :
SHANGHAILead Time :
30-40 WORKING DAYSWeight :
700kgPRODUCT DESCRIPTION
1.Automatic feeding rack, which is equipped with a modern monitoring system and can adjust the working speed at will according to different conditions.
2.Each discharge shaft is controlled by an independent motor and monitoring system to control the discharge speed, so that each layer of material is kept in a suitable
state of tension during the conveying process.

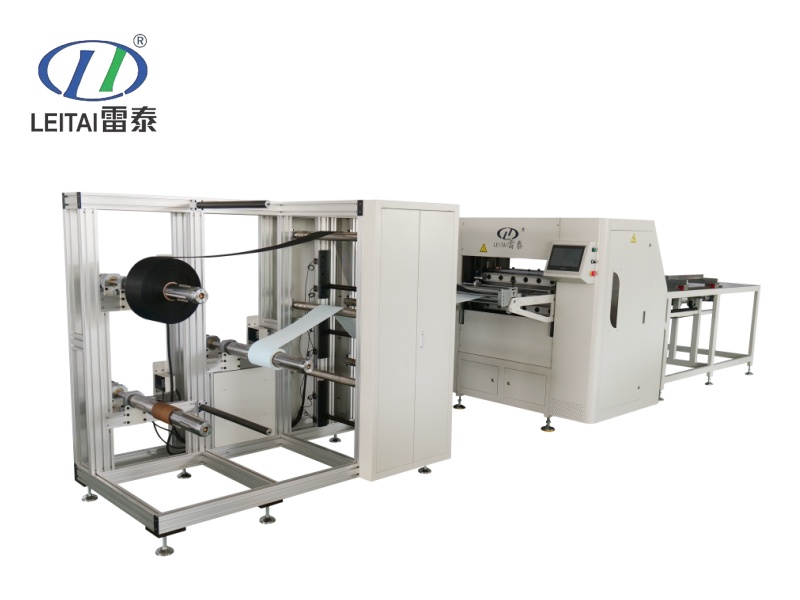

3.The blade folding machine uses high-precision servo motor and reducer to drive the upper and lower folding blades. The opening Angle and lifting stroke of the folding
blades can be adjusted according to the folding height, which reduces mechanical loss and improves work efficiency.
4.The origami machine not only folds fast, but also has low noise, and the folded products have flat and uniform end surfaces.
PRODUCT SPECIFICATIONS
1.Three-Tier Material Rack
| Raw material coil diameter | Max 450mm |
| Maximum filter paper width | 650mm |
| Material layers | 3 layers |
| Power of motor | 0.6kw |
| Supply voltage | 220v/50hz |
2.Pleating Machine
| Pleating width | Max 600mm |
| Pleating height range | 6-70mm |
| Capacity | Max 200 pleat/min |
| Supply voltage | 380v/50hz |
| Air source | 0.6Mpa |
| Heat setting temperature | Normal-200℃ |
| Heat setting power | 6kw |
| Power of motor | 3.6kw |
| Gross weight | 700kg |
| Dimension |
1565mm×1630mm×1600mm |
SAMPLES
CERTIFICATIONS
COOPERATE PARTNERS
ABOUT US
Bengbu Letai Filter Equipment Co.,Ltd is a professional company specializing in the development,design,production and sales of filter equipment.
The main products are hosuhole purification,industrial purification,water filtration,dust filtration,industry without partition,with partition filter production equipment.
The main equipment is automatic 300 folding height no partition origami production line,high temperature and high temperature resistant glass fiber origami production line,
automatic knife origami production line,PP origami gluing high folding high climbing gluing production line,automatic air conditioning filter element welt fitting machine,origami machine and so on.
The company has senior technical personnel with more than 10 years of rich experience,the development of more than 30 kinds of product.
And will further develop advanced,practical and efficient models acording to the actual production in the industry,pay attention to the domestic and international trends,and make relevant contributions to the filtration and filter industry in China and the world.
WHY CHOOSE US
10000 square meters work shop
The factory has sufficient stock supply
24 hours technical and after sales service
Professional maintenance and provision of various accessories
The hepa filter making machine has a novel and unique appearance and is easy to operate. It is servo-controlled, highly automated, highly precise, and highly efficient.
