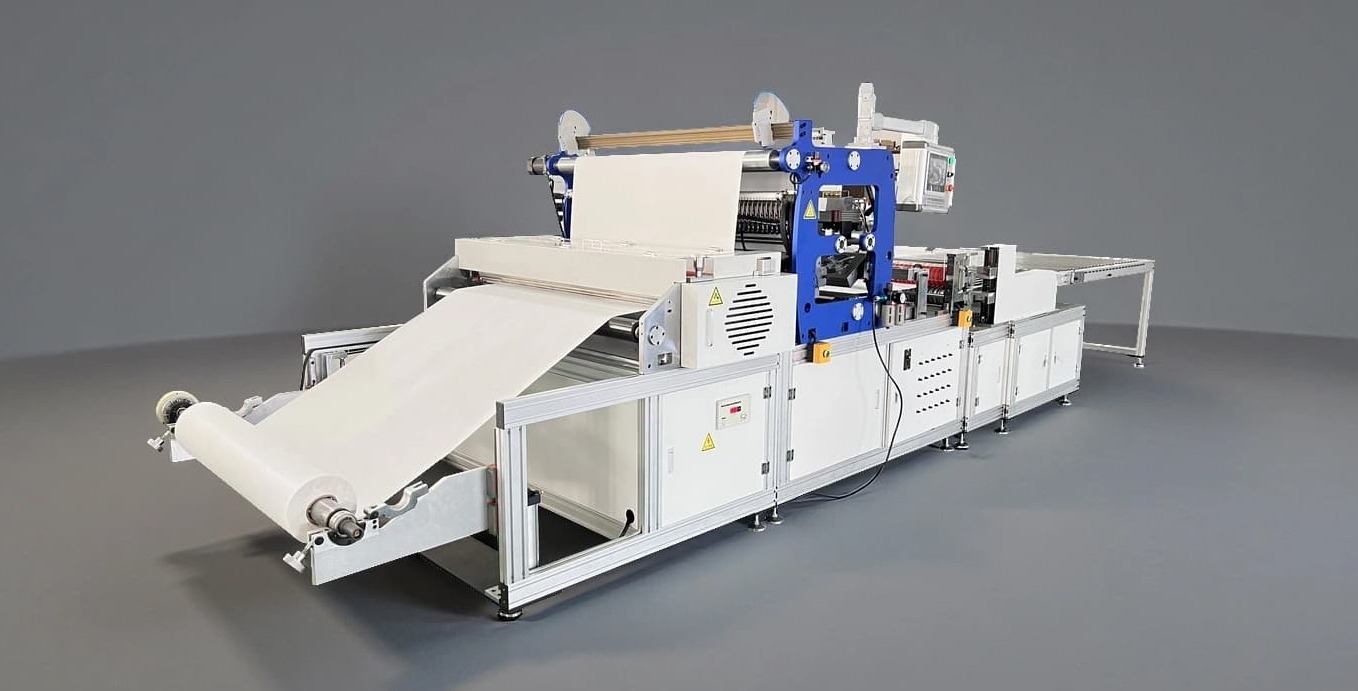

LTWG-1300N 300 Pleat Depth Full-auto Hepa Filter CNC Mini Paper Pleating Machine

LTWG-1300N 300 Pleat Depth Full-auto Hepa Filter CNC Mini Paper Pleating Machine

The machine utilizing high-strength aluminum profiles as the frame, it is not only beautiful, but also makes the machine upgraded. The upper and lower cutting knives are made of alloy steel quenched and processed for durability.

  • Item No :

    LTWG-1300N
  • Order(MOQ) :

    1 SET
  • Payment :

    T/T
  • Product Origin :

    BENGBU,ANHUI
  • Color :

    BLUE,CUSTOMIZATION
  • Shipping Port :

    SHANGHAI
  • Lead Time :

    AROUND 30-45 DAYS
  • Weight :

    1700KG



PRODUCT DESCRIPTION

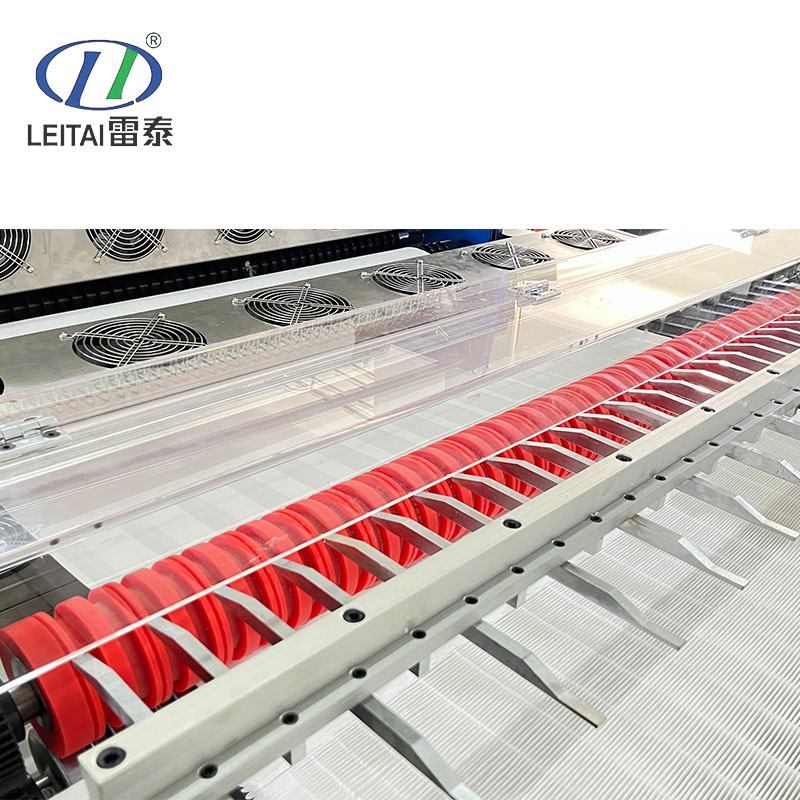

1. Use the upper and lower belts to pull the folded filter material apart, while conveying the filter material, when it reaches the number of counted folds, the cutter rises to cut off the filter material. After the filter material is cut off, the cutter descends to complete the cutting of a product.

2. Utilizing high-strength aluminum profiles as the frame, it is not only beautiful, but also makes the machine upgraded. The upper and lower cutting knives are made of alloy steel quenched and processed for durability.



PRODUCT  SPECIFICATIONS

Model LTWG-1300N
Feeding Speed 15m/min(According to the height of pleating)
Width of  Material

≤1300mm

Roll Size Of  Raw Material

≤800mm

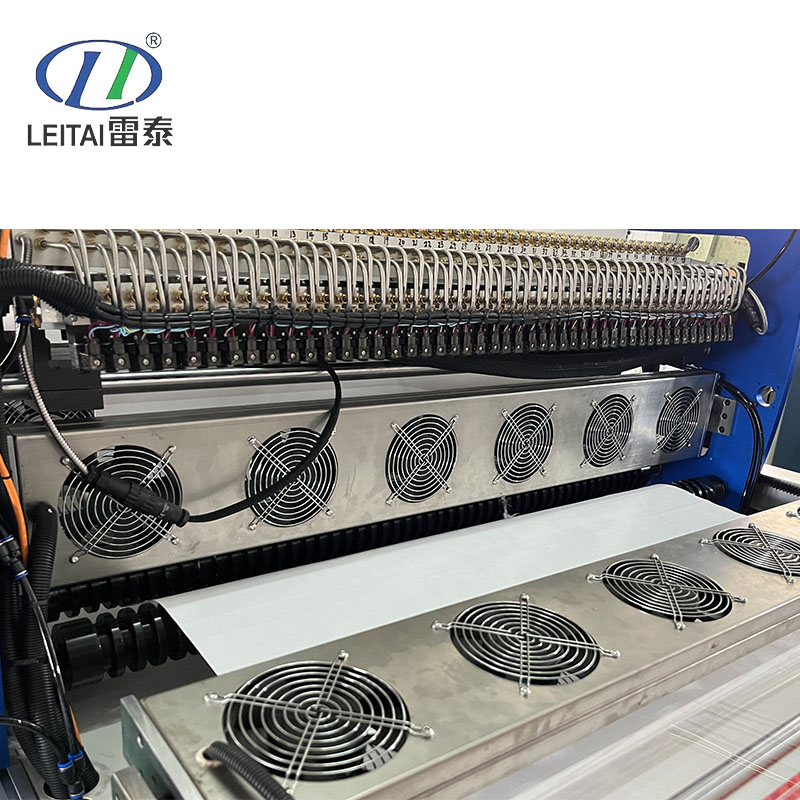

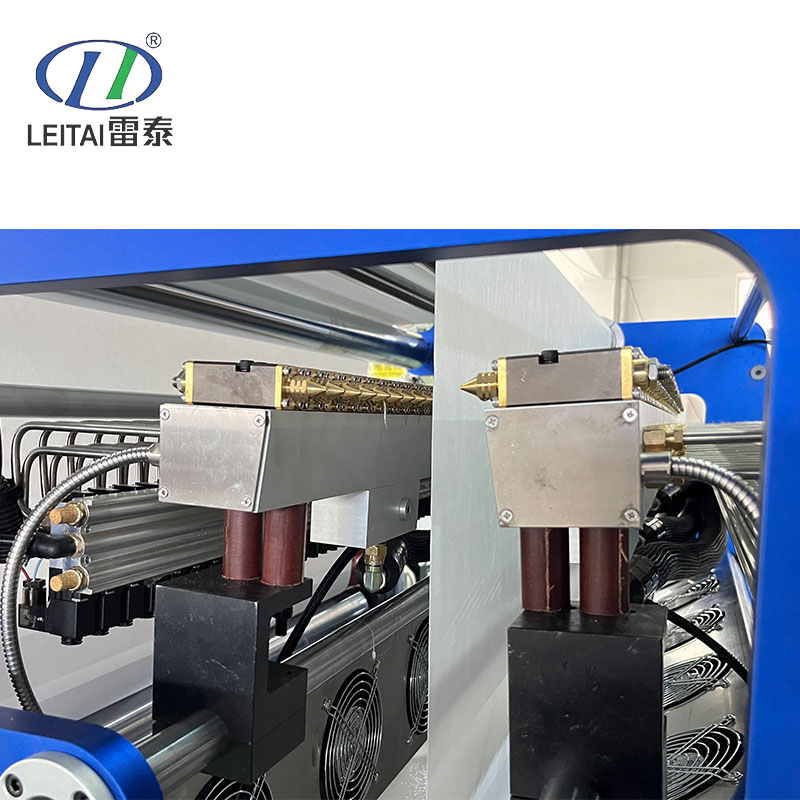

Number of Glue Injection Nozzle 48x2
Glue Line Space 25.4mm
Adhesive Method Cross Injection
Folding Height Range 20-300mm
Total Power 27kw
Hot Melt Machine 50L(2 pcs)
Melt Speed  45kg/h
Voltage 380V/50Hz
Air Pressure 0.6Mpa
Net Weight 1700kg
Production 7185x2145x1720mm





HOW IT WORKS

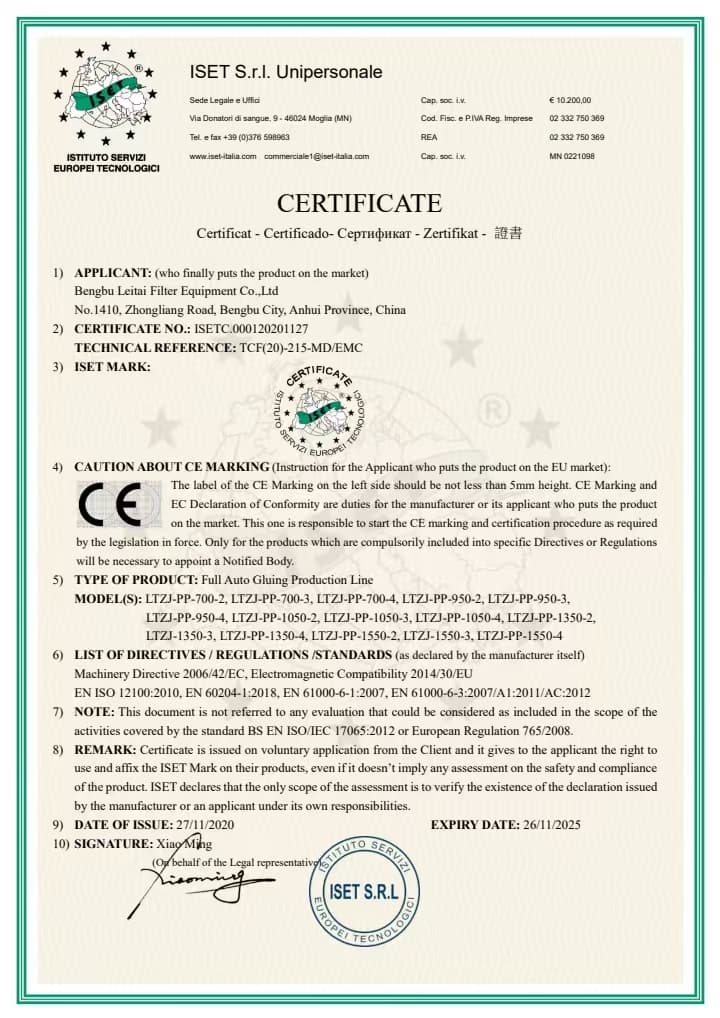

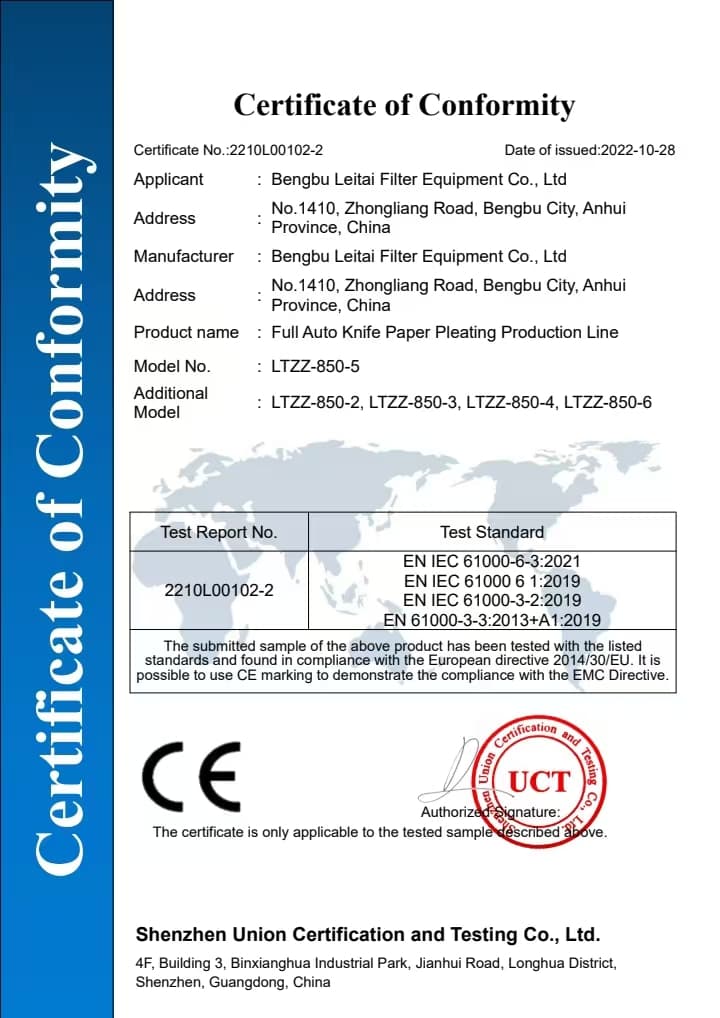

CERTIFICATIONS



COOPERATE PARTNERS



ABOUT US

Bengbu Letai Filter Equipment Co.,Ltd is a professional company specializing in the development,design,production and sales of filter equipment.

The main products are hosuhole purification,industrial purification,water filtration,dust filtration,industry without partition,with partition filter production equipment.

The main equipment is automatic 300 folding height no partition origami production line,high  temperature and high temperatuyre resistant glass fiber origami production line,

automatic knife origami production line,PP origami gluing high folding high climbing gluing production line,automatic air conditioning filter element welt fitting machine,origami machine and so on.

The company has senior technical personnel with more than 10 years of rich experience,the development of more than 30 kinds of product.

And will further develop advanced,practical and efficient modelsacording to the actual production in the industry,pay attention to the domestic and international trends,and make relevant contributionsto the filtration and filter industry in China and the world.



WHY CHOOSE US

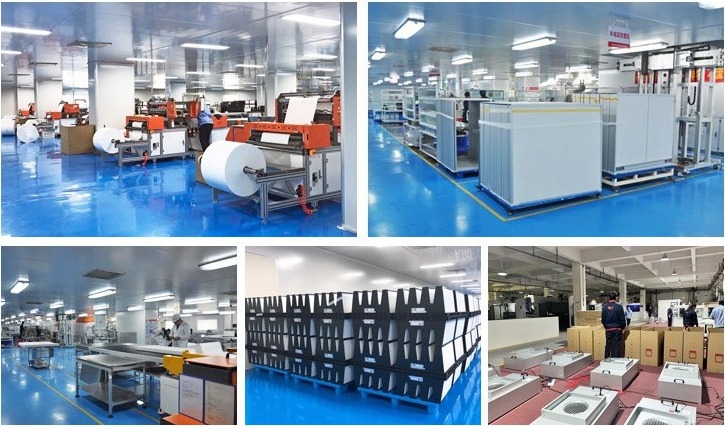

10000 square meters work shop

The factory has sufficient stock supply

24 hours technical and after sales service

Professional maintenance and provision of various accessories
